Swiss lathe machining, or Swiss screw machining, is a process for creating small, complex, and highly precise parts using a Swiss-type lathe. Unlike a traditional lathe, the workpiece is fed through a support guide bushing, and the headstock moves the material, which allows for minimal deflection and vibration, leading to high accuracy. This method is used to produce intricate components for industries like medical, aerospace, and electronics.

How it works

· Support for the workpiece: The key feature is a guide bushing that supports the bar stock close to the point of the cut.

· Movement: Instead of the workpiece spinning in a fixed position, the headstock moves, feeding the material into the stationary tooling. The workpiece can both rotate and move back and forth along the Z-axis.

· Precision: This design minimizes deflection and vibration, allowing for greater precision and tighter tolerances, especially on long, thin parts.

Advantages

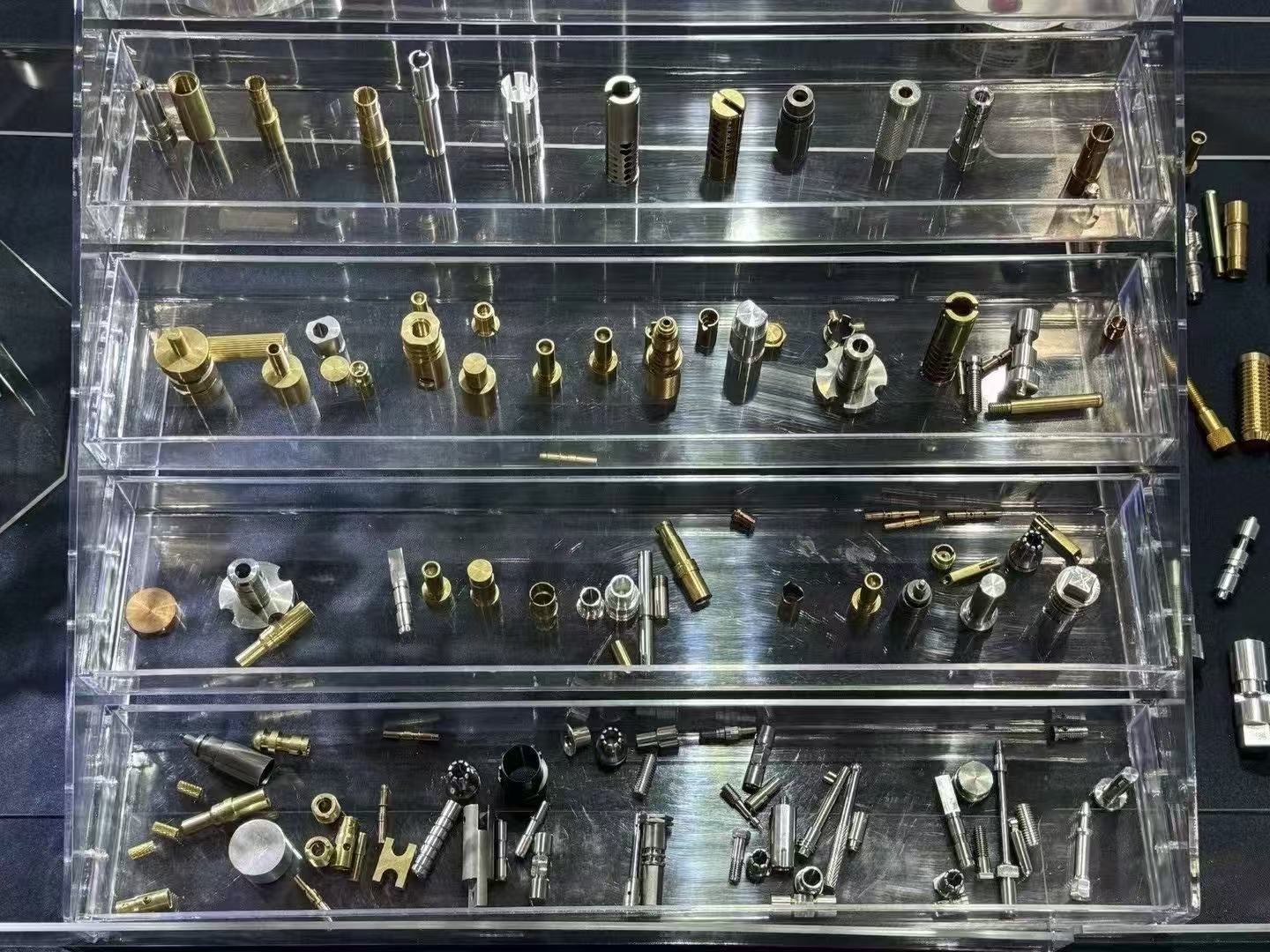

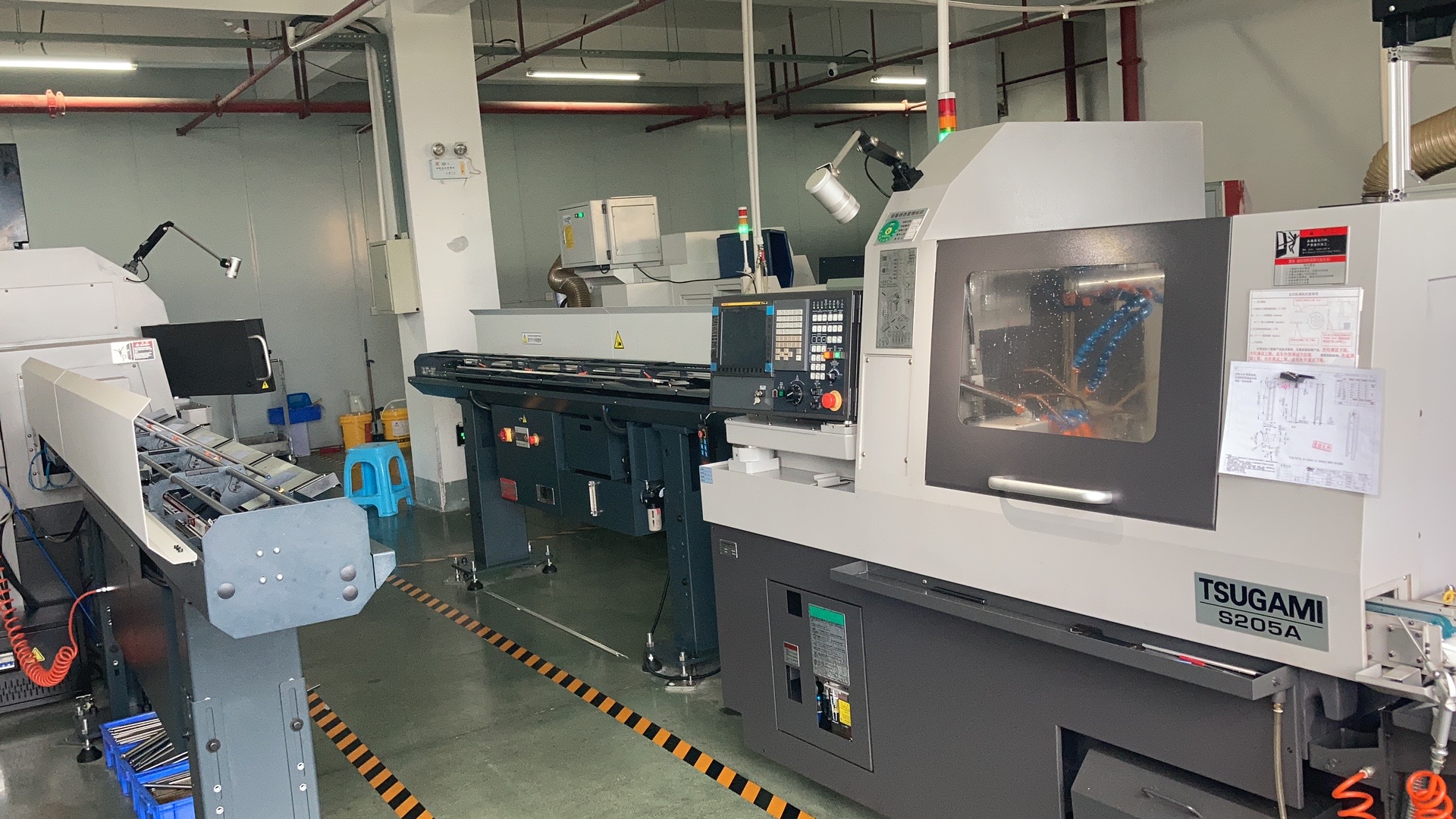

· High precision: Swiss lathes can achieve extremely tight tolerances (e.g.,±0.0002plus or minus 0.0002±0.0002 inches).

· Complex parts: They are ideal for machining intricate designs with features like thin walls.

· Multi-operation capability: Multiple operations like drilling, milling, and threading can often be performed simultaneously in a single setup.

· Increased production volume: The quick movements lead to short cycle times, increasing production speed.

Applications

· Medical: Dental implants, surgical instruments, orthopedic devices

· Aerospace: Aircraft engine components, navigation systems

· Electronics: Connectors, sensors, microelectronics

· Telecommunications: Connectors, filters, actuators

Considerations

· Cost: Swiss-type CNC machines are generally more expensive than conventional lathes.

· Setup time: Initial setup can be longer compared to conventional machines.

· Material yield: The amount of usable material may be less because of the length of bar stock consumed between the part and the collet pusher.
